Portkeys LH7P 7 Inch Monitor

The Portkeys LH7P 7" Touchscreen Monitor delivers bright, accurate monitoring and advanced camera control in a compact, lightweight build. With a 1000-nit, 10-bit (8+2 FRC) Rec.709 display, it’s daylight-viewable and ideal for outdoor shoots or gimbal setups. The 1920×1080 resolution panel ensures crisp, color-true previews while professional monitoring tools like waveform, peaking, ARRI false color, and anamorphic display modes help you fine-tune every shot.

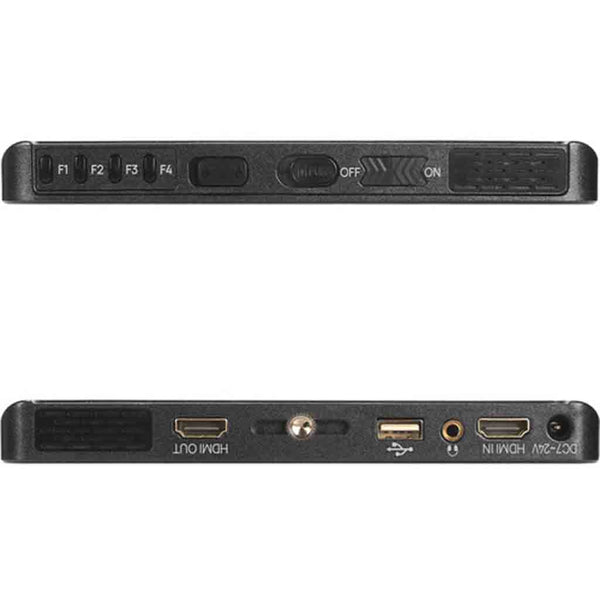

Equipped with HDMI input/output, four customizable function buttons, and built-in wireless camera control for Sony and Blackmagic Design cameras, the LH7P is built for flexible workflows. Its efficient 9W power draw, NP-F battery plate, and 245g weight make it an ultra-portable monitor designed for creators who need both precision and performance on set.

• 7-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x
• 1080 and a 1000:1 contrast ratio.
• Daylight-viewable with a maximum brightness of 1,000nits.
• Supports 4K oversampling to 1080p.
• Professional monitoring tools: Waveform, Anamorphic, Peaking, ARRI False Color.
• Four user-assignable function buttons.

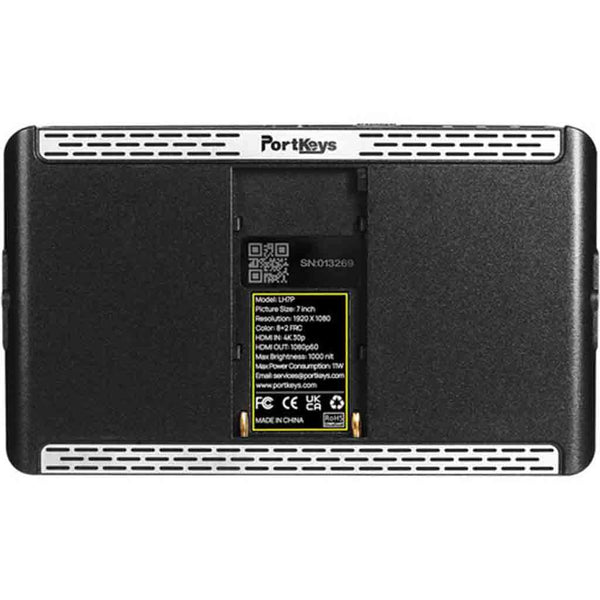

• Built-in Sony NP-F style battery plate. Low power draw of only 9W.
• Customized peaking range(Peaking Frame).
• Custom JPG picture custom freeze frame.
• Custom rectangular image crop.
• Wireless camera control for Sony and Blackmagic Design cameras.
• Lightweight: only 245g/8.6oz.


• Specifications

  Screen Size: 7″
  Dimension: 176.2*103.8*18.4mm
  Viewing Angle: 85/85/85/85
  Brightness: 1000nit
  Resolution: 1920*1080
  Contrast Ratio: 1000:1
  Weight: 245g
  Color Gamut: Rec.709
  Maximum Power: 9W
  Antenna: 2.4G
  Fan: Yes
  Material: PC+ABS
  Input Voltage: 7-24V

Portkeys LH7P Monitor
Safety Box
Micro USB Flash Drive
A to A HDMI Cable
Screen Cleaning Wipe
Screen Protector
MH-2 Mount
Portkeys 1 Year Limited Warranty
