Portkeys PT5III 5 Inch Monitor

The Portkeys PT5 III 5" Touchscreen Monitor gives filmmakers and content creators a bright, lightweight solution for on-camera monitoring. Featuring a 5-inch 1920x1152 touchscreen display with 500-nit brightness, it provides sharp, color-accurate previews in a compact design. The PT5 III supports 4K HDMI input and output with low latency, ideal for DSLRs, mirrorless, and cinema cameras.

User-friendly tools like focus peaking, false color, zebras, and 3D LUT support help you nail exposure and color on set. With multiple power options—including USB-C and Sony NP-F battery compatibility—the PT5 III keeps up with all-day shoots without weighing you down.

• 5.4-inch, 8-bit panel with a resolution of 1920 x 1152 and a 1000:1 contrast ratio.
• Maximum brightness of 800nits.

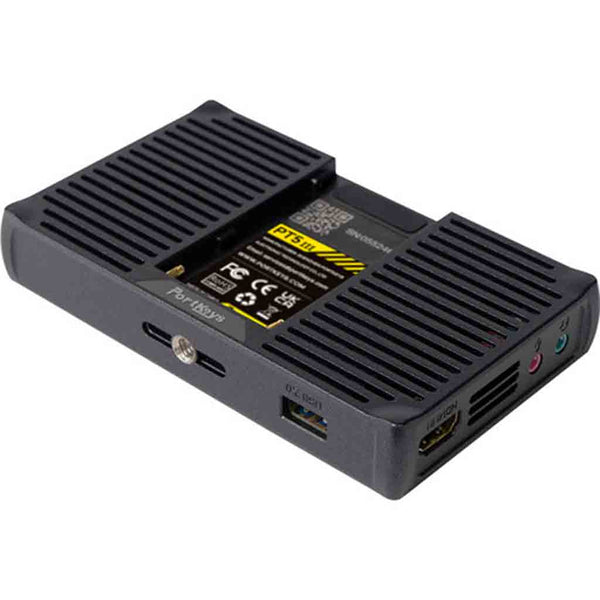

• 1 x HDMI input, 1 x HDMI output, 1 x USB 3.0 Type-C port, 1 x 3.5mm audio output, 1 x 3.5mm audio input.
• Maximum input resolution: 4K DCI at 30p.
• Maximum output resolution: 1080P60.
• Powered by MOVNORM OS, with a full set of professional monitoring tools: Waveform, Histogram, Peaking, False Color, and 3D LUT monitoring.
• Built-in 360° color grader to adjust the Hue and Saturation of a select part of the image.
• Powered with a single Sony NP-F battery or USB-C power input.
• Low power draw: only 7W.
• Lightweight and rugged ABS Plastic housing: only 154.4g/5.45oz.


• Specifications

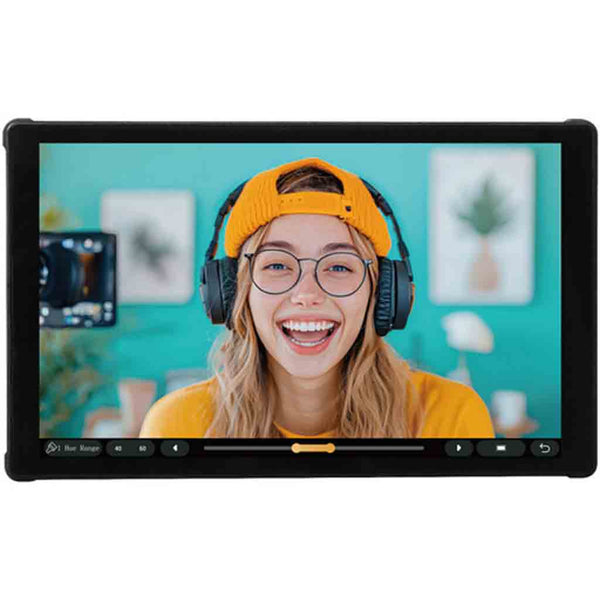

  Screen: 5.4", 1920×1152 touchscreen, 800nits, 1000:1 contrast, 178°
  Viewing Inputs: HDMI (4K30p), USB-C (power), 3.5mm
  MIc Outputs: HDMI (1080p60), 3.5mm headphone, USB-A (LUTs/Firmware)
  Power: NP-F550/F750/F970 or USB-C (7–24V, 7.5W)
  Mounting: 2× 1/4"-20 with locating pins
  Weight: 154.5g / 5.45oz
  Dimensions: 135.1 × 82.5 × 22mm
  Material: ABS + polycarbonate
  Operating System: MOVNORM

Portkeys PT5 III Monitor
Safety Box
PT5 III Sunshade
Pair of Rubber Covers
HDMI Cable (A to A)
HDMI Cable (A to D)
MH-2 Monitor Mount
Customer Feedback Card
Portkeys 1 Year Limited Warranty
